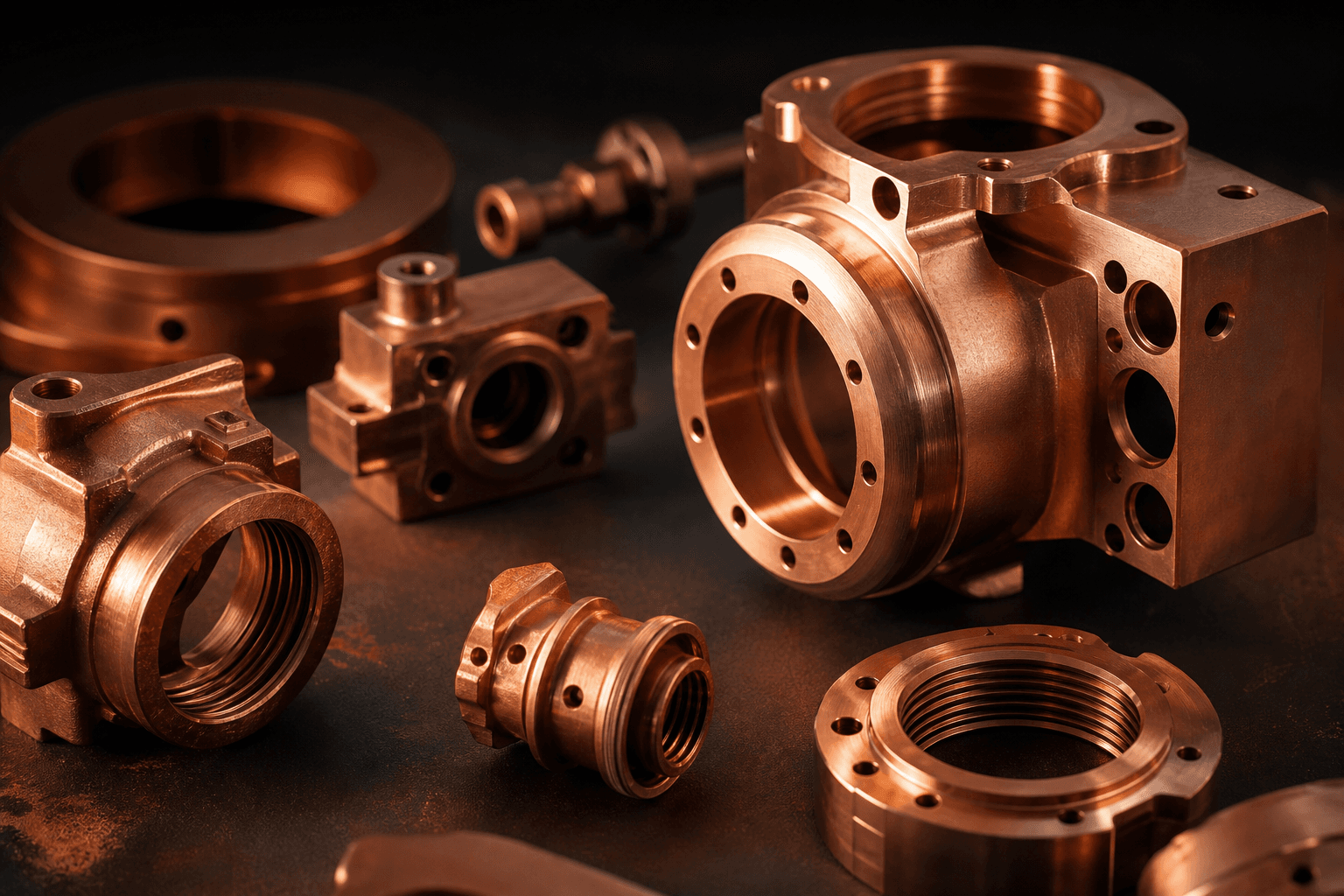

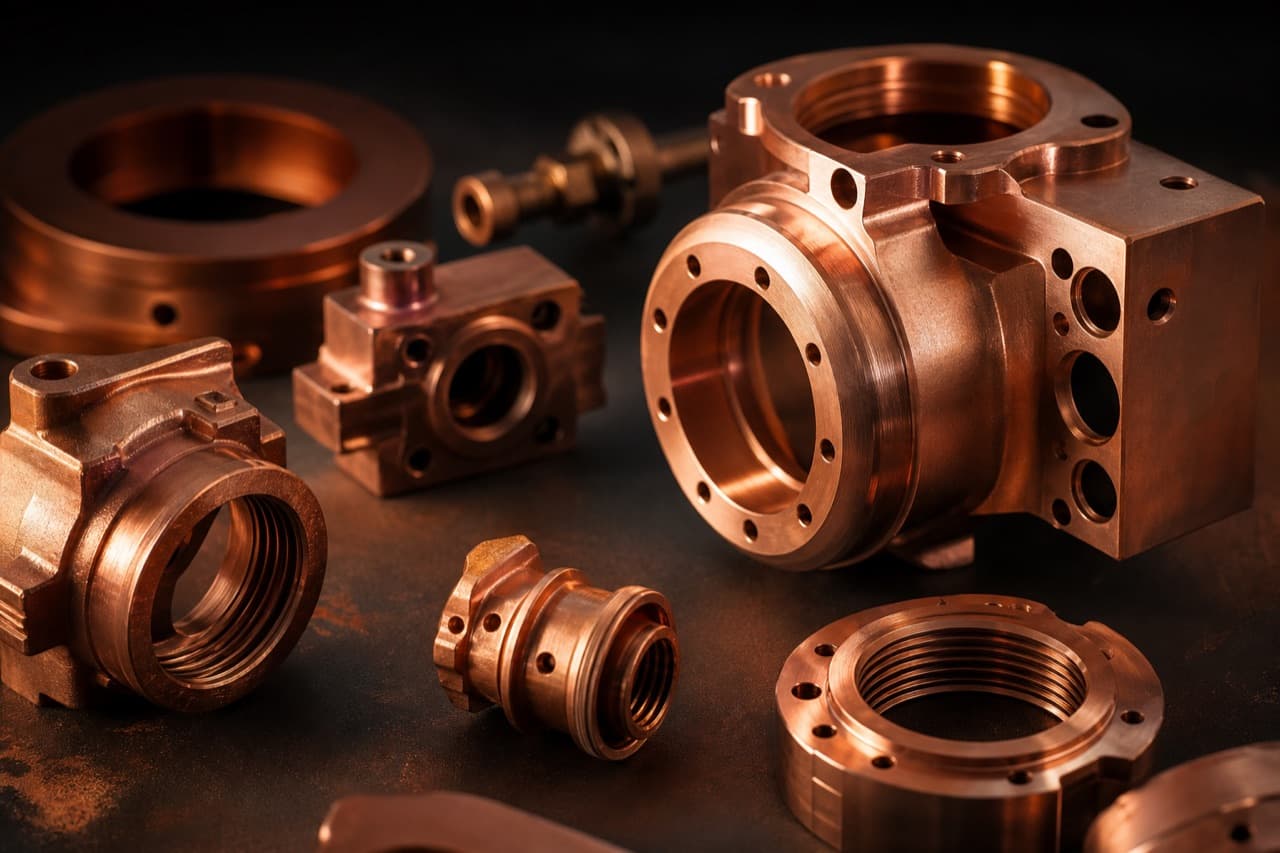

Structural copper-alloy components
Parts where geometry, corrosion resistance or assembly design matters more than maximum conductivity.
COPPER COST & FIT REVIEW
Replace Copper Components with MIM Alternatives
Copper components face material volatility and supply pressure, but copper is often chosen for conductivity. We help manufacturers separate structural copper parts that may be redesigned from electrical or thermal applications that require caution.
Upload Your Copper PartCopper Replacement Requires Careful Engineering
MIM should not be presented as a direct substitute for pure copper in high-conductivity applications. If your part carries current or transfers heat, we need to review conductivity, contact area, temperature, coating and performance targets before suggesting any alternative.
Copper Parts Worth Reviewing

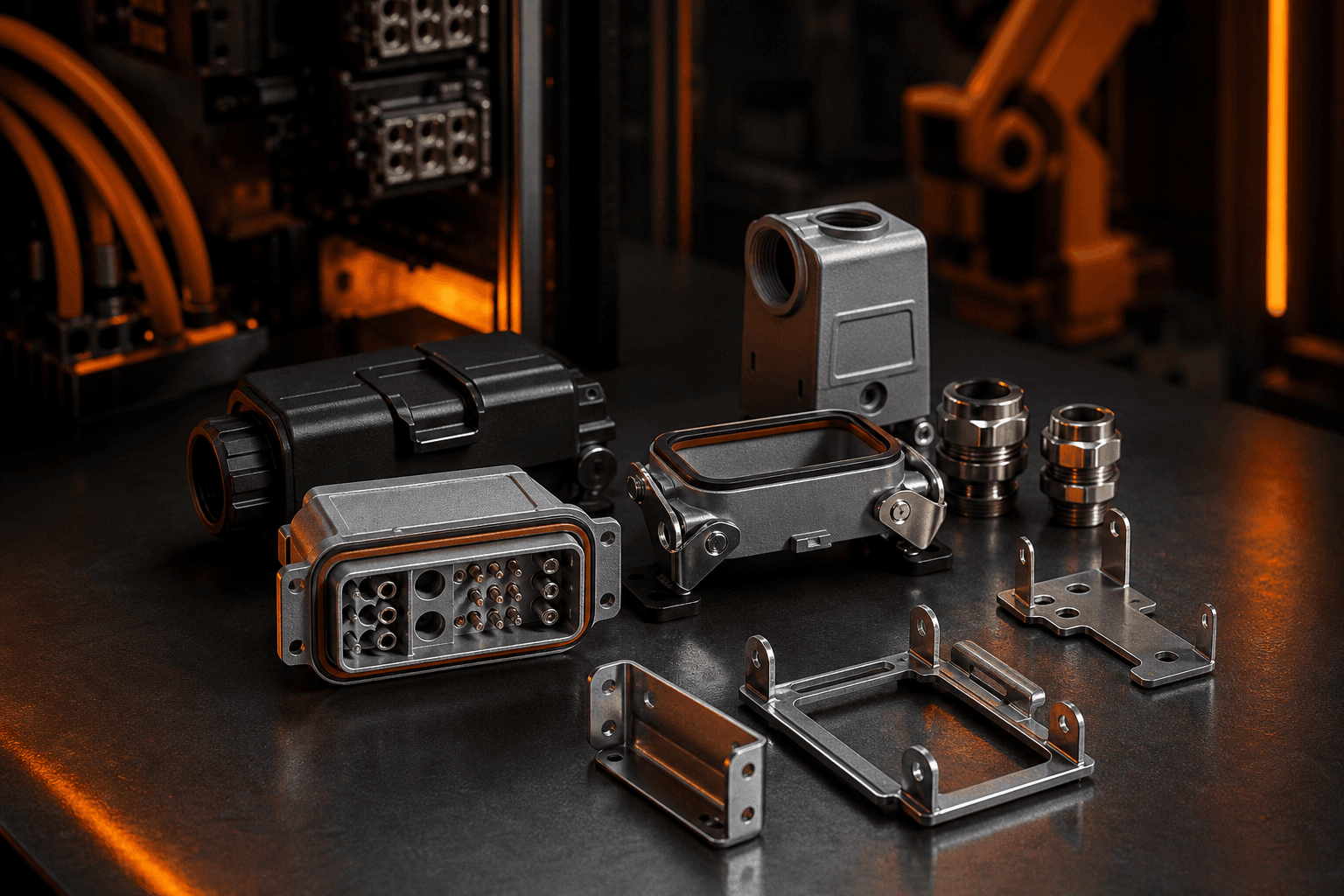

Connector housings and supports
Non-conductive-load features around electrical assemblies may be candidates for MIM redesign.

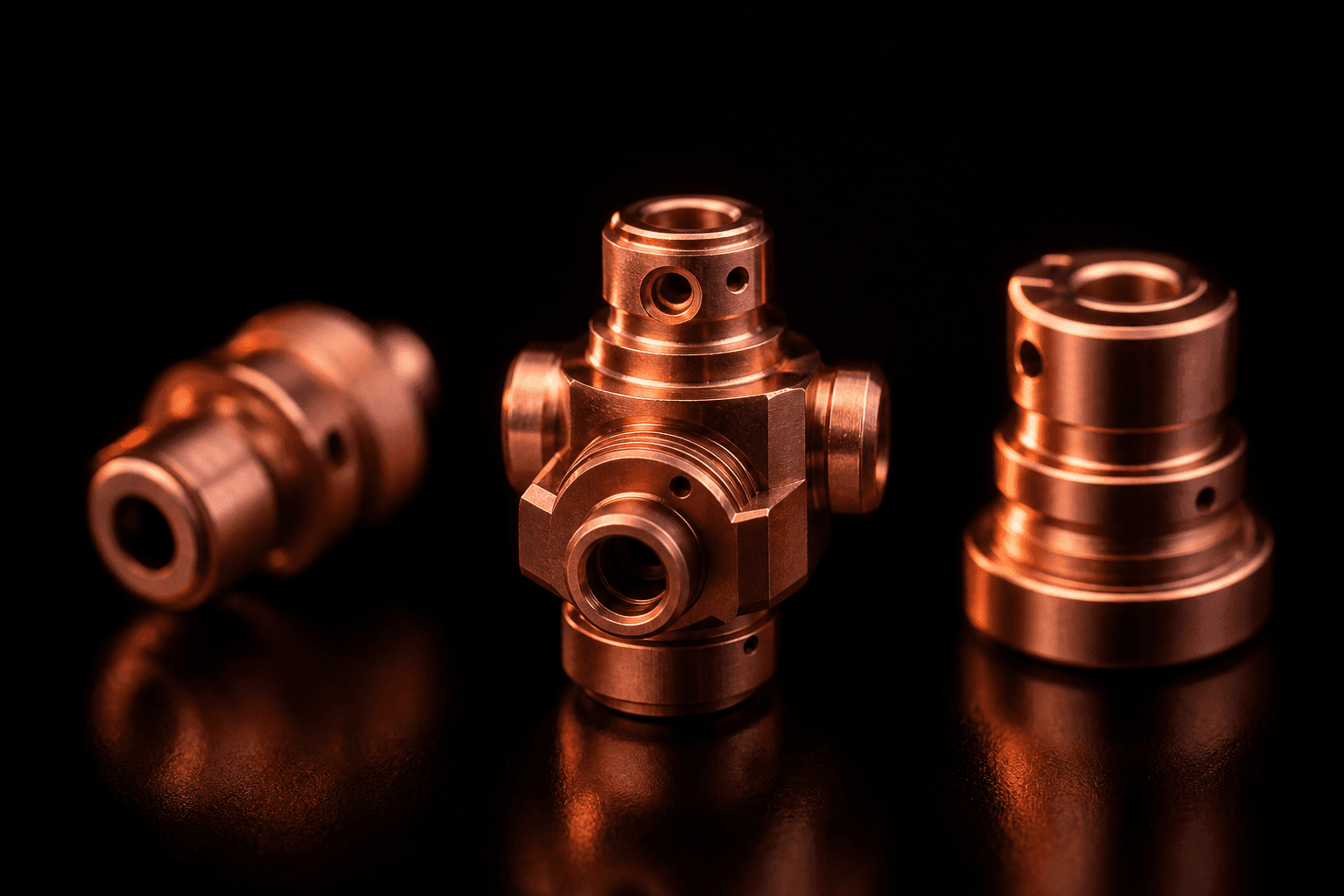

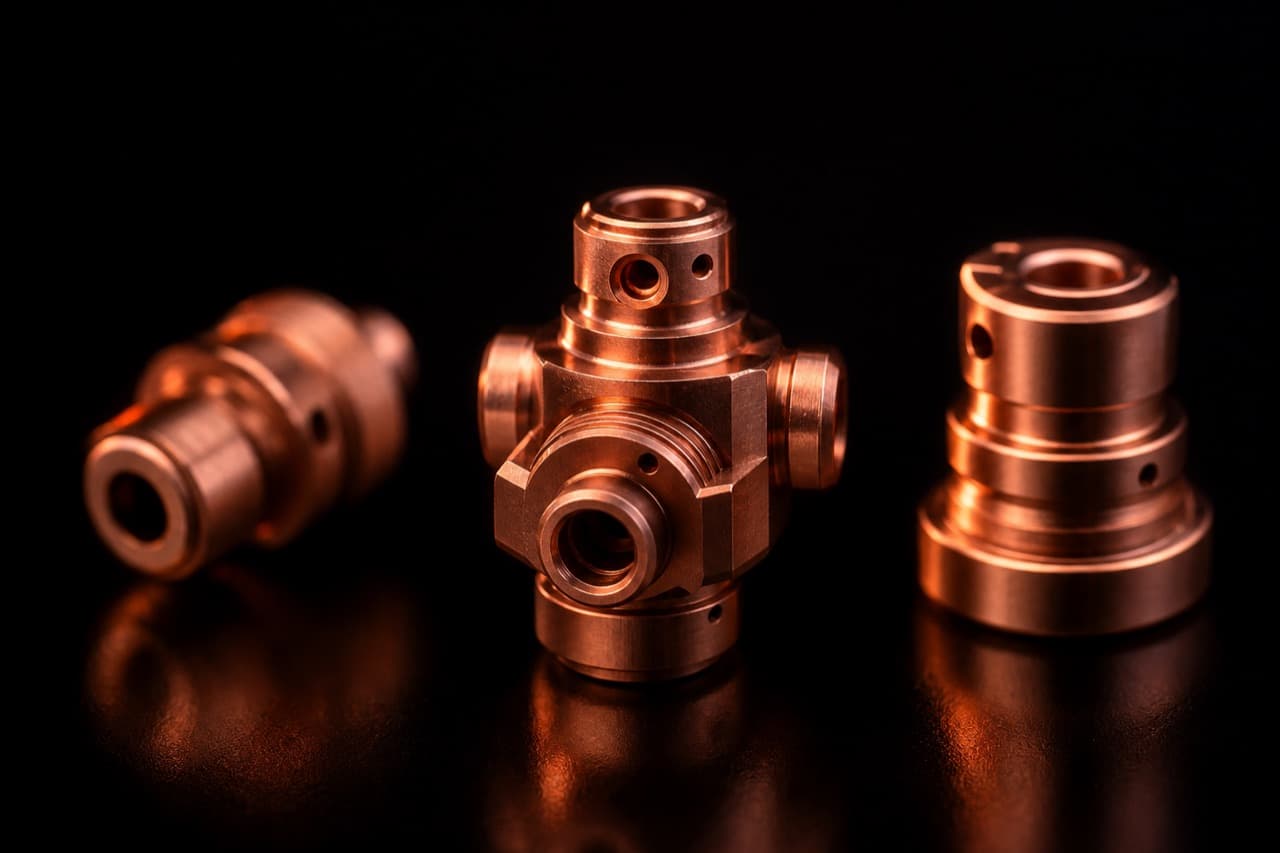

Complex small hardware
Copper or copper-alloy pieces with expensive machining operations.

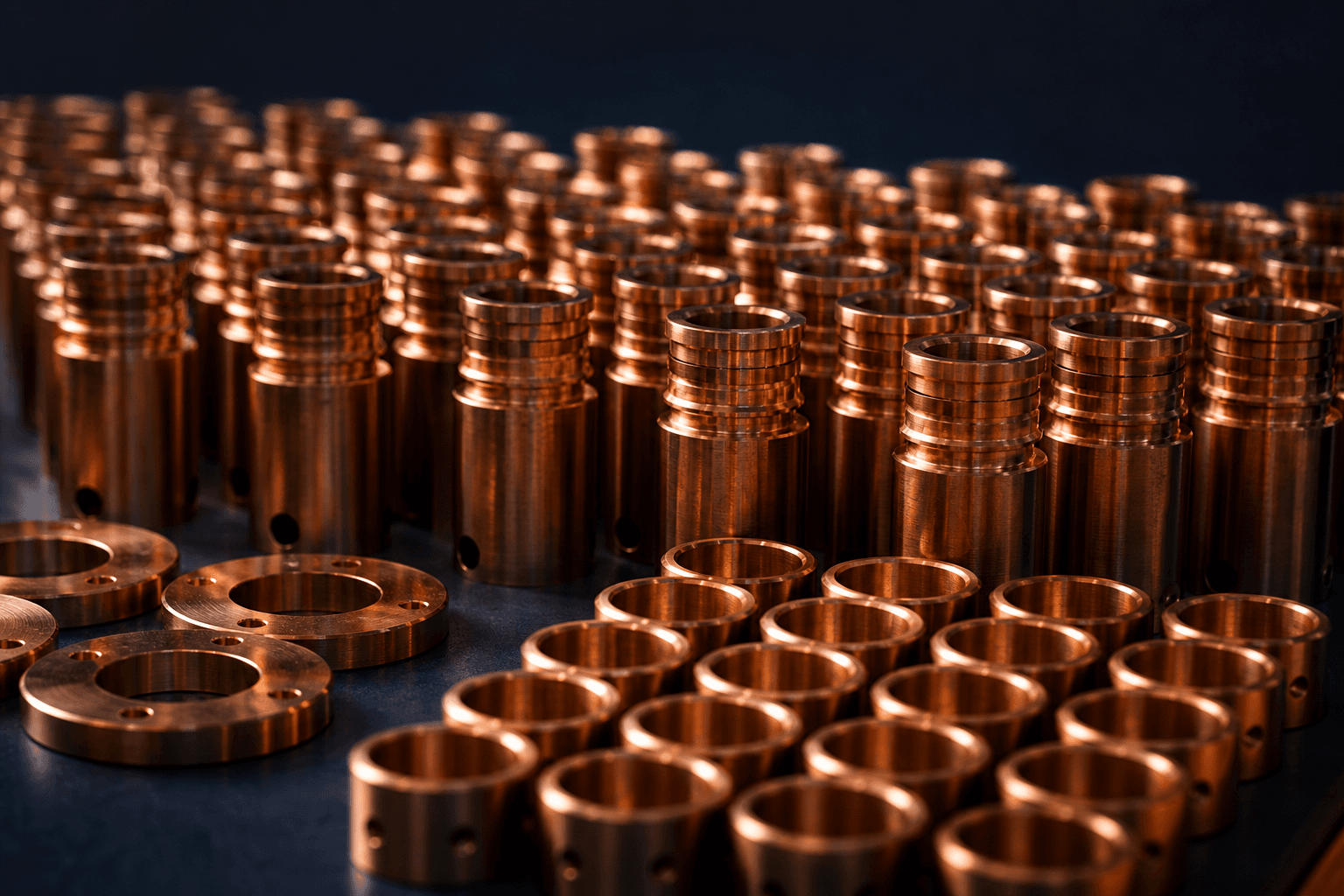

Cost-sensitive high-volume parts
Stable programs where copper exposure creates margin pressure.
ENGINEERING REVIEW
Is This Part a Practical MIM Candidate?
We review process fit before recommending a material or production change.
Good fit signals
Structural parts near electrical systems
Supports, brackets, housings or retainers where conductivity is secondary.
Copper alloy parts with complex geometry
Parts where machining cost is driven by shape rather than simple material removal.
Parts that can change material
Applications where stainless, low alloy steel or another MIM material can pass performance tests.
Review with caution
Pure copper-level conductivity
Bus bars, high-current contacts and thermal conductors may require copper performance.
Unknown electrical load
Replacement should not proceed without current, temperature and resistance data.
Very low volume prototypes
Tooling economics may not work.
Information to send
- Drawing
- Copper grade
- Electrical or thermal role
- Annual quantity
- Operating environment
How Copper Replacement Is Evaluated
The review starts with performance risk, then cost. A lower-cost part is not useful if conductivity, thermal behavior or reliability fails.
| Factor | What to evaluate |
|---|---|
| Conductivity requirement | Electrical and thermal function determines whether replacement is possible. |
| Current material grade | Pure copper and copper alloys have different replacement constraints. |
| Annual quantity | Higher volume improves MIM economics. |
| Geometry and machining load | MIM is more relevant when complexity drives cost. |
Frequently Asked Questions
Can MIM make copper parts?
Copper MIM exists, but feasibility depends on density, conductivity, geometry and production requirements. It should be reviewed case by case.
Can MIM replace pure copper?
Not automatically. Pure copper is often selected for conductivity, and MIM alternatives may not match that performance without detailed validation.
What if the part carries current?
Share current, resistance, temperature and contact requirements. We will first determine whether replacement is technically realistic.
Which copper parts are candidates?
Structural or complex copper-alloy components with high machining cost are more likely candidates than high-conductivity electrical parts.
Upload your copper part for a careful replacement review
We will check conductivity risk first, then evaluate whether MIM can reduce cost for your application.
Upload Your Copper Part
